Steel panel radiator
Specification of Steel panel radiator

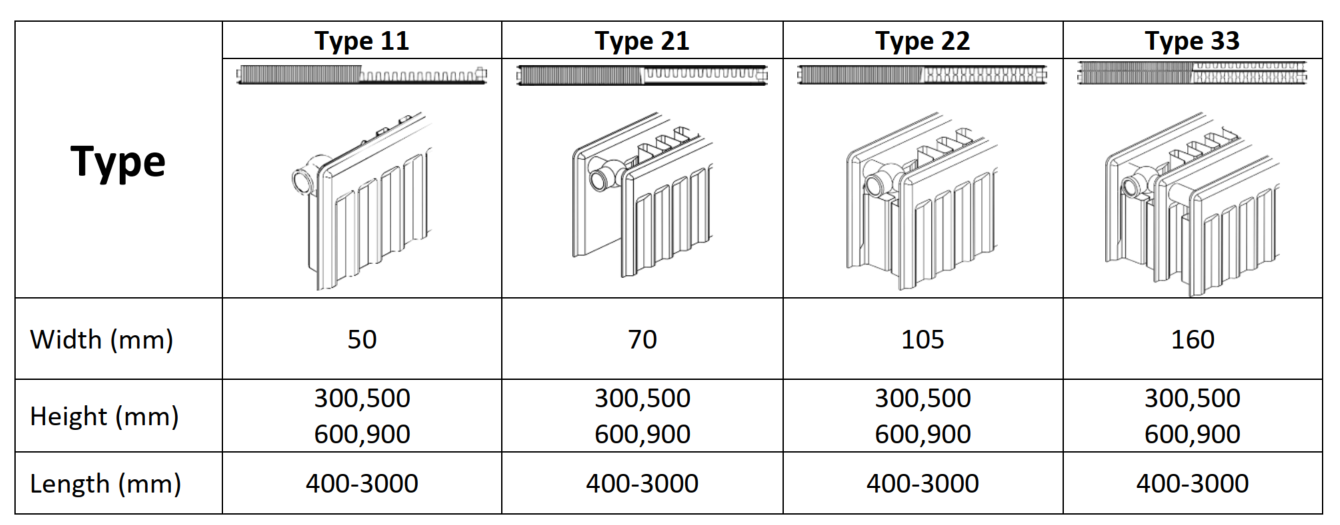

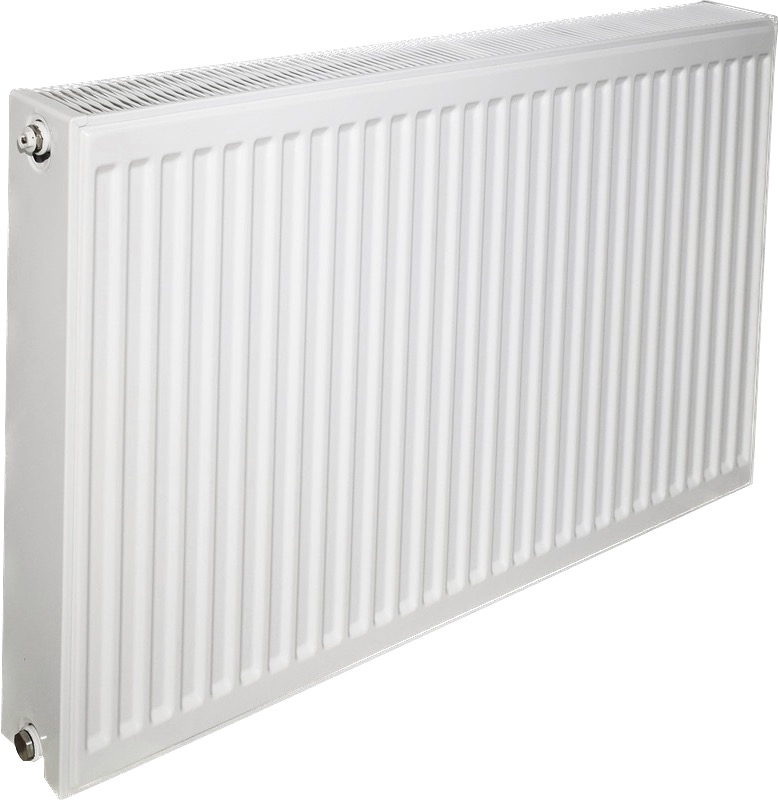

We supply type 11, 21, 22, 33 steel panel radiator, the connection method can be side connection or bottom connection with insert valve, the heat output are list as below for your reference
|
Type 11 |
Heat output (W, ΔT=60°) |
|||
|
Height (mm) |
||||
|
Length (mm) |
300 |
500 |
600 |
900 |
|
300 |
189 |
291 |
337 |
459 |
|
400 |
251 |
388 |
449 |
613 |
|
500 |
315 |
484 |
561 |
766 |
|
600 |
378 |
581 |
673 |
920 |
|
700 |
441 |
678 |
786 |
1073 |
|
800 |
504 |
775 |
898 |
1227 |
|
900 |
566 |
872 |
1010 |
1379 |
|
1000 |
630 |
969 |
1123 |
1533 |
|
1100 |
693 |
1066 |
1235 |
1686 |
|
1200 |
755 |
1163 |
1347 |
1839 |
|
1300 |
819 |
1259 |
1459 |
1993 |
|
1400 |
881 |
1356 |
1571 |
2145 |
|
1500 |
944 |
1453 |
1684 |
2299 |
|
1600 |
1008 |
1550 |
1796 |
2452 |
|
1700 |
1070 |
1647 |
1909 |
2606 |
|
1800 |
1134 |
1744 |
2021 |
2759 |
|
1900 |
1196 |
1841 |
2132 |
2912 |
|
2000 |
1259 |
1938 |
2245 |
3065 |
|
2100 |
1323 |
2034 |
2357 |
3218 |
|
2200 |
1385 |
2131 |
2470 |
3372 |
|
2300 |
1448 |
2228 |
2582 |
3525 |
|
2400 |
1511 |
2326 |
2694 |
3679 |
|
2500 |
1574 |
2423 |
2807 |
3831 |
|
2600 |
1637 |
2520 |
2919 |
3985 |
|
2700 |
1700 |
2617 |
3030 |
4138 |
|
2800 |
1763 |
2714 |
3143 |
4292 |
|
2900 |
1826 |
2810 |
3255 |
4445 |
|
3000 |
1889 |
2907 |
3368 |
4598 |
|
Type 21 |
Heat output (W, ΔT=60°) |
|||
|
Height (mm) |
||||
|
Length (mm) |
300 |
500 |
600 |
900 |
|
300 |
290 |
438 |
509 |
716 |
|
400 |
386 |
584 |
679 |
955 |
|
500 |
483 |
730 |
849 |
1193 |
|
600 |
579 |
877 |
1019 |
1433 |
|
700 |
676 |
1022 |
1188 |
1671 |
|
800 |
773 |
1168 |
1359 |
1910 |
|
900 |
869 |
1315 |
1528 |
2148 |
|
1000 |
966 |
1461 |
1697 |
2388 |
|
1100 |
1062 |
1606 |
1868 |
2626 |
|
1200 |
1158 |
1752 |
2037 |
2865 |
|
1300 |
1256 |
1899 |
2207 |
3104 |
|
1400 |
1352 |
2045 |
2377 |
3343 |
|
1500 |
1448 |
2191 |
2547 |
3581 |
|
1600 |
1545 |
2337 |
2716 |
3820 |
|
1700 |
1641 |
2483 |
2887 |
4059 |
|
1800 |
1737 |
2629 |
3056 |
4298 |
|
1900 |
1835 |
2776 |
3226 |
4536 |
|
2000 |
1931 |
2921 |
3396 |
4776 |
|
2100 |
2028 |
3067 |
3565 |
5014 |
|
2200 |
2124 |
3213 |
3735 |
5252 |
|
2300 |
2220 |
3360 |
3905 |
5491 |
|
2400 |
2318 |
3505 |
4075 |
5730 |
|
2500 |
2409 |
3644 |
4236 |
5957 |
|
2600 |
2505 |
3790 |
4406 |
6195 |
|
2700 |
2602 |
3936 |
4575 |
6433 |
|
2800 |
2698 |
4081 |
4745 |
6672 |
|
2900 |
2794 |
4227 |
4914 |
6910 |
|
3000 |
2891 |
4373 |
5083 |
7148 |
|
Type 22 |
Heat output (W, ΔT=60°) |
|||
|
Height (mm) |
||||
|
Length (mm) |
300 |
500 |
600 |
900 |
|
300 |
365 |
559 |
649 |
926 |
|
400 |
487 |
746 |
865 |
1235 |
|
500 |
609 |
931 |
1082 |
1543 |
|
600 |
732 |
1118 |
1298 |
1851 |
|
700 |
853 |
1303 |
1515 |
2160 |
|
800 |
975 |
1490 |
1732 |
2468 |
|
900 |
1097 |
1677 |
1947 |
2777 |
|
1000 |
1219 |
1862 |
2164 |
3086 |
|
1100 |
1340 |
2049 |
2380 |
3394 |
|
1200 |
1462 |
2236 |
2597 |
3703 |
|
1300 |
1584 |
2421 |
2813 |
4011 |
|
1400 |
1706 |
2608 |
3029 |
4319 |
|
1500 |
1827 |
2794 |
3245 |
4629 |
|
1600 |
1950 |
2980 |
3462 |
4937 |
|
1700 |
2072 |
3167 |
3679 |
5245 |
|
1800 |
2194 |
3352 |
3895 |
5554 |
|
1900 |
2315 |
3539 |
4111 |
5862 |
|
2000 |
2437 |
3726 |
4327 |
6171 |
|
2100 |
2559 |
3911 |
4544 |
6480 |
|
2200 |
2681 |
4098 |
4760 |
6788 |
|
2300 |
2802 |
4284 |
4977 |
7097 |
|
2400 |
2924 |
4470 |
5194 |
7405 |
|
2500 |
3046 |
4657 |
5409 |
7714 |
|
2600 |
3169 |
4842 |
5626 |
8022 |
|
2700 |
3290 |
5029 |
5842 |
8331 |
|
2800 |
3412 |
5216 |
6059 |
8640 |
|
2900 |
3534 |
5401 |
6275 |
8948 |
|
3000 |
3656 |
5588 |
6491 |
9256 |
|
Type 33 |
Heat output (W, ΔT=60°) |
|||
|
Height (mm) |
||||
|
Length (mm) |
300 |
500 |
600 |
900 |
|
300 |
520 |
798 |
926 |
1282 |
|
400 |
694 |
1064 |
1236 |
1711 |
|
500 |
867 |
1330 |
1544 |
2138 |
|
600 |
1041 |
1596 |
1853 |
2566 |
|
700 |
1215 |
1862 |
2162 |
2993 |
|
800 |
1388 |
2128 |
2471 |
3420 |
|
900 |
1561 |
2394 |
2779 |
3848 |
|
1000 |
1735 |
2661 |
3089 |
4275 |
|
1100 |
1908 |
2926 |
3397 |
4704 |
|
1200 |
2082 |
3193 |
3706 |
5131 |
|
1300 |
2255 |
3458 |
4015 |
5559 |
|
1400 |
2428 |
3725 |
4323 |
5986 |
|
1500 |
2602 |
3990 |
4633 |
6413 |
|
1600 |
2775 |
4256 |
4941 |
6841 |
|
1700 |
2949 |
4522 |
5250 |
7268 |
|
1800 |
3123 |
4788 |
5559 |
7697 |
|
1900 |
3295 |
5054 |
5868 |
8124 |
|
2000 |
3469 |
5320 |
6177 |
8552 |
|
2100 |
3643 |
5587 |
6486 |
8979 |
|
2200 |
3816 |
5852 |
6794 |
9406 |
|
2300 |
3990 |
6119 |
7103 |
9834 |
|
2400 |
4164 |
6384 |
7412 |
10261 |
|
2500 |
4336 |
6651 |
7721 |
10690 |
|
2600 |
4510 |
6916 |
8030 |
11117 |
|
2700 |
4684 |
7183 |
8338 |
11545 |
|
2800 |
4857 |
7448 |
8648 |
11972 |
|
2900 |
5031 |
7715 |
8956 |
12399 |
|
3000 |
5204 |
7981 |
9265 |
12827 |
